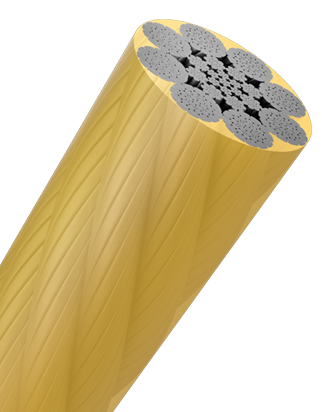

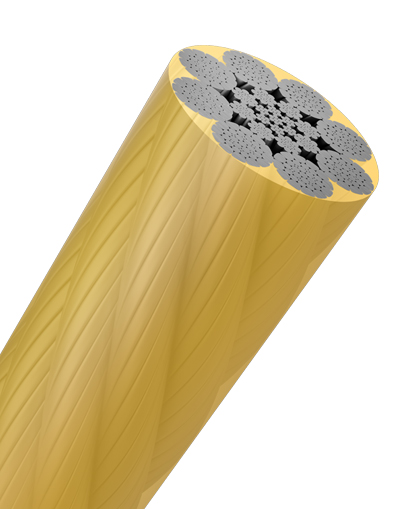

Minesform 8/8PVF

  • Constructions 8xK37SF, 8xK50SF, 8xK49SF
  • CoreSteel Core (Optional Plastic filled)
  • Range38mm – 127mm
  • Rope grade1770, Dual
  • MBF980 - 10484 kN

One of the best-performing mining ropes, Minesform 8/ 8PVF combines the advantages of 8-strand ropes and plastic filling – more fatigue resistance, more points of contact, reduced wear, and more.

  • More flexible construction increases fatigue resistance
  • Much better contact conditions compared to 6-strand ropes
  • Better contact enables extended abrasion & fatigue life
  • Operates at low stress levels, with longer bending fatigue life
  • Smooth surface of compacted ropes improves contact & reduces wear on both sheave and rope
  • Better inner strand contact due to plastic impregnation (PI)
  • PI improves resistance to shock loading
  • Improved fatigue on rope life due to PI
  • Plastic keeps internal lubricant intact, and keeps out dust
  • With locked lubrication, increased safety with PI

Typical applications :

Shovel machines, Dragline machines
